Stainless steel hoppers

The right quality for your application

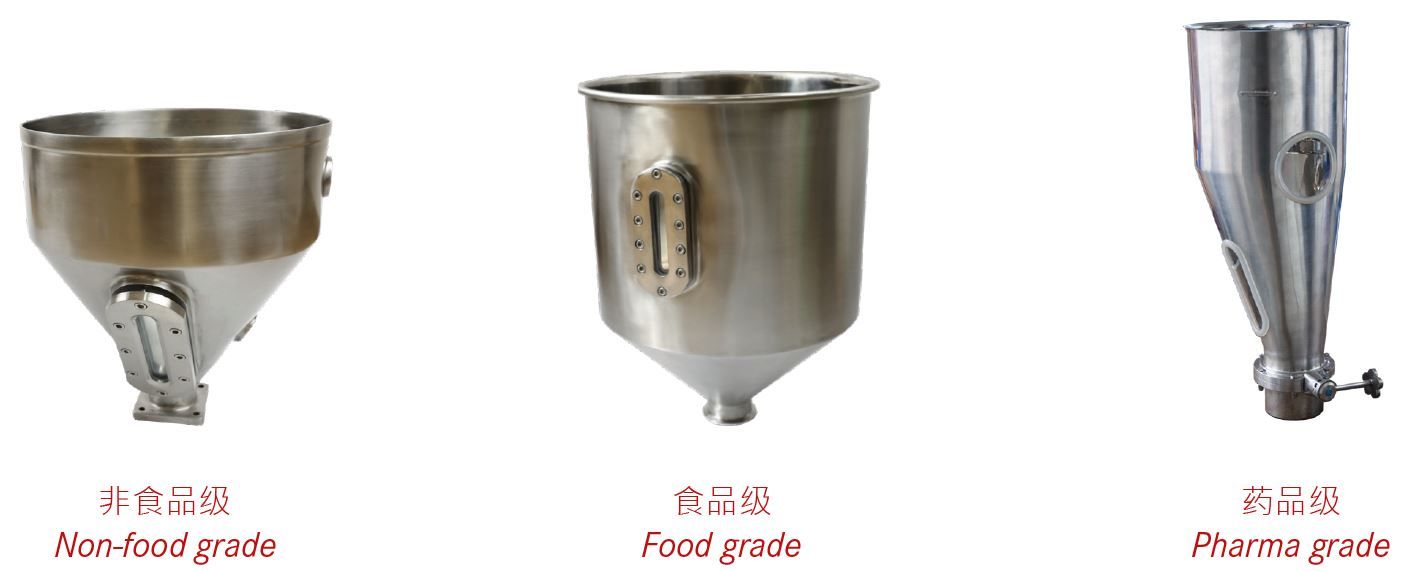

From non-food grade for abrasive, pasty and fluid media, to food grade with polished and grinded welding seams and surfaces, to pharmaceutical grade we offer the right hoppers for your applications. Special designs such as eccentric or double-wall hoppers are also possible. We are happy to discuss your special needs with our skilled employees.

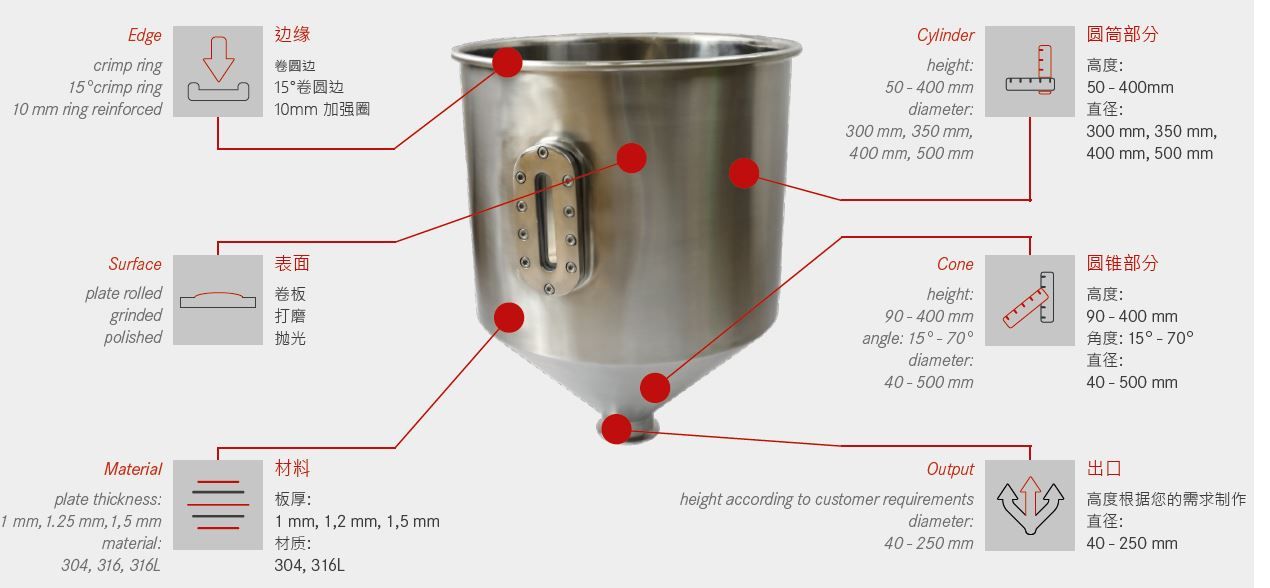

Hoppers for all manufacturing processes


#

Options

  • inspection glasses

  • cover

  • flanged

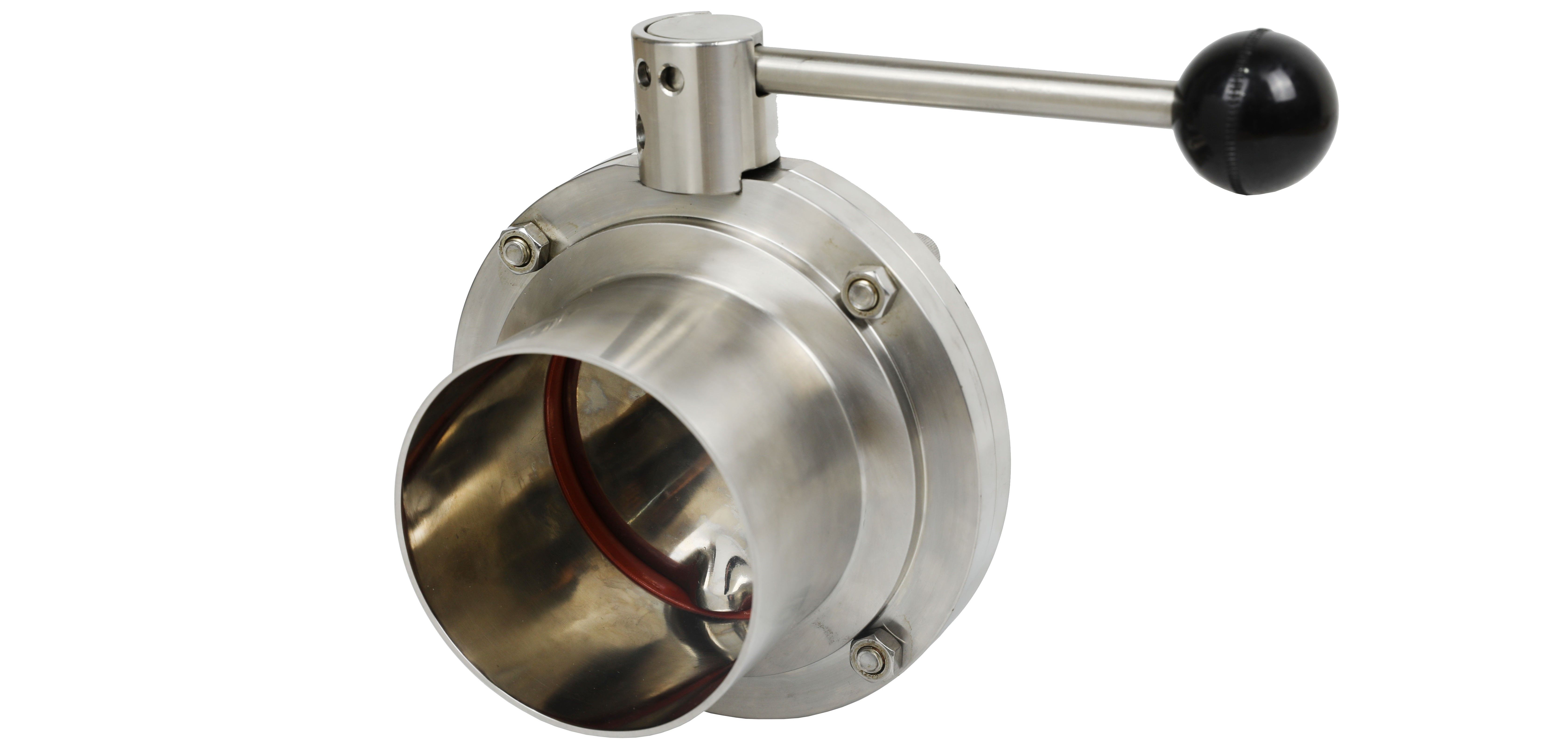

  • butterfly valves

  • eccentric design

  • additional exits

  • ball valve

We also invite you to send us your drawing, so we can calculate your individual hopper!

#

Choose your surface quality grade:

Odoo - Sample 1 for three columns

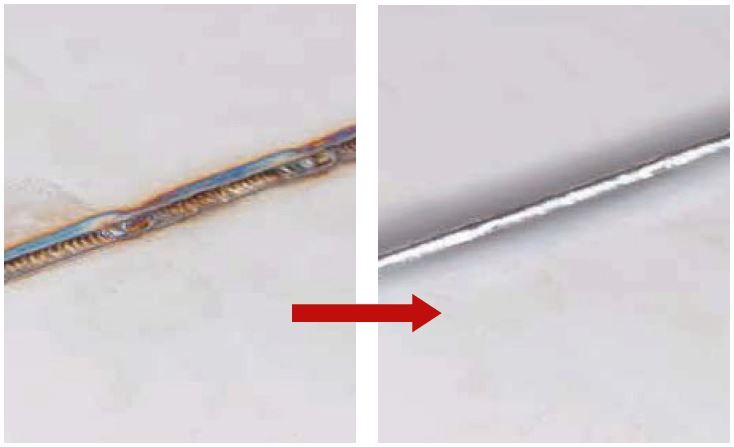

GRADE 4

Polished surfaces (Rz 0,8).  Electropolishing as an option. Suitable for food and pharma applications.

Odoo - Sample 2 for three columns

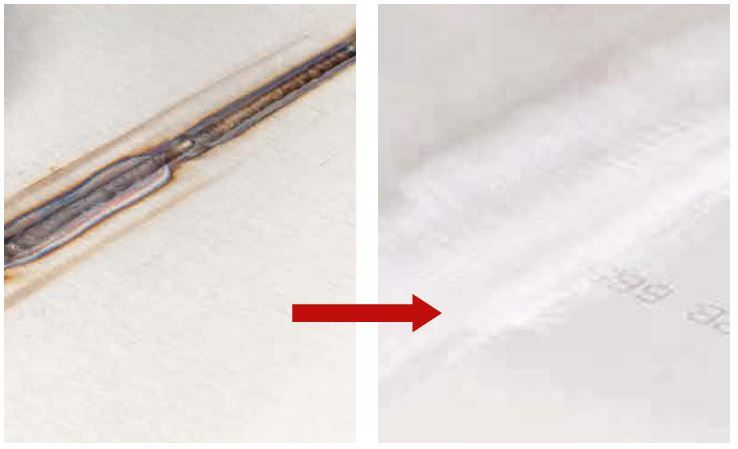

GRADE 3

A grinded surface with planed welding seams (P180). On request also with glass-bead blasted surface or brush-finished.
Suitable for food applications or for optical reasons outside.

Odoo - Sample 3 for three columns

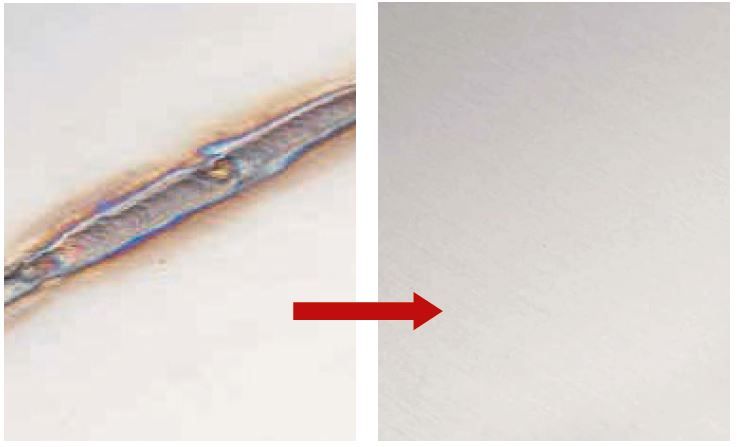

GRADE 2

Planed welding seams with  removed annealing colours. Suitable for non-food-industries, for example extruders.

Odoo - Sample 3 for three columns

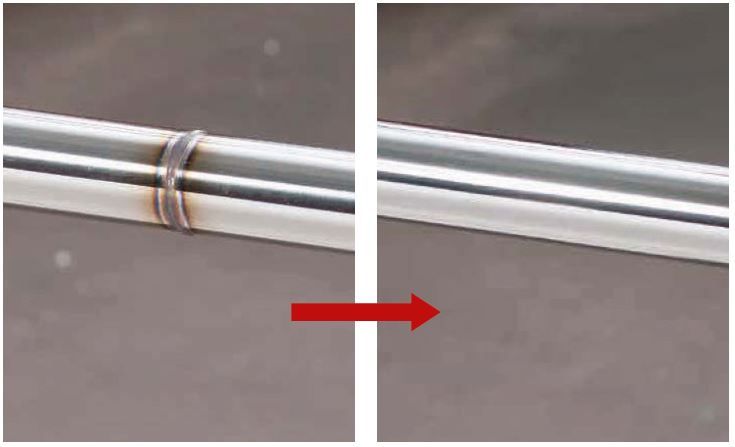

GRADE 1

Removed annealing colours on  visible welding seams.
